Oil in Your Subaru's Coolant? Check the Upper Oil Pan O-Rings
If you've found brown sludge in your coolant reservoir, or coolant that looks milky or oily, your first thought may be a blown head gasket. On older Subarus that was often the cause. On today's 2.5L boxer engine, a common culprit is something smaller: the O-rings that keep the engine's oil and coolant apart.
Which Subarus are affected
The 2.5L FB-series boxer engine is used across much of the Subaru lineup, so the same problem can show up in any of these:
Legacy
Outback
Forester
Crosstrek (2.5L models)
What's happening inside the engine
Oil and coolant run through passages that sit right next to each other inside the engine. Where they meet at the upper oil pan, rubber O-rings keep them separated. Over time heat and age harden those O-rings. They don't leak on the outside, so there's no puddle to spot. Instead, oil slowly seeps into the cooling system.
Signs to watch for
Brown or oily film in the coolant reservoir
Coolant that looks milky or sludgy
Swollen, soft, or spongy rubber coolant hoses
Why it shouldn't wait
Oil in the coolant attacks the rubber in your cooling system. Hoses swell, go soft, and eventually fail, and the oily residue builds up in the radiator and heater core. The longer it goes, the more parts need cleaning or replacing.
How it's fixed

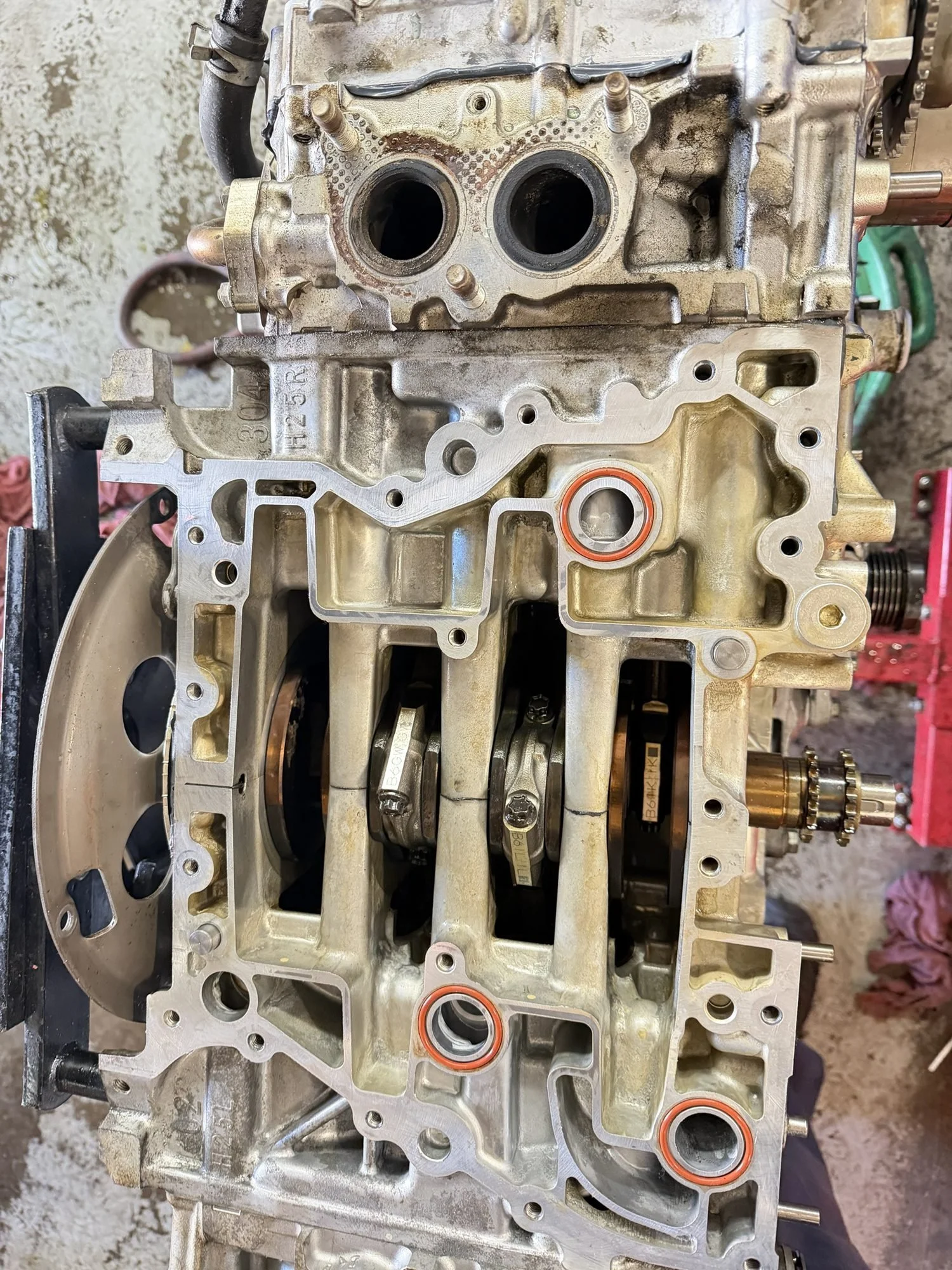

The repair involves removing the engine from the vehicle, removing the timing cover and upper oil pan, cleaning every sealing surface down to bare metal, and installing new O-rings and sealant. The cam carriers are a common external oil leak on this engine too, so they usually get resealed as well while everything is apart. The cooling system is then flushed to clear out the contamination.
I find the actual source first, so you're not paying to fix the wrong part.

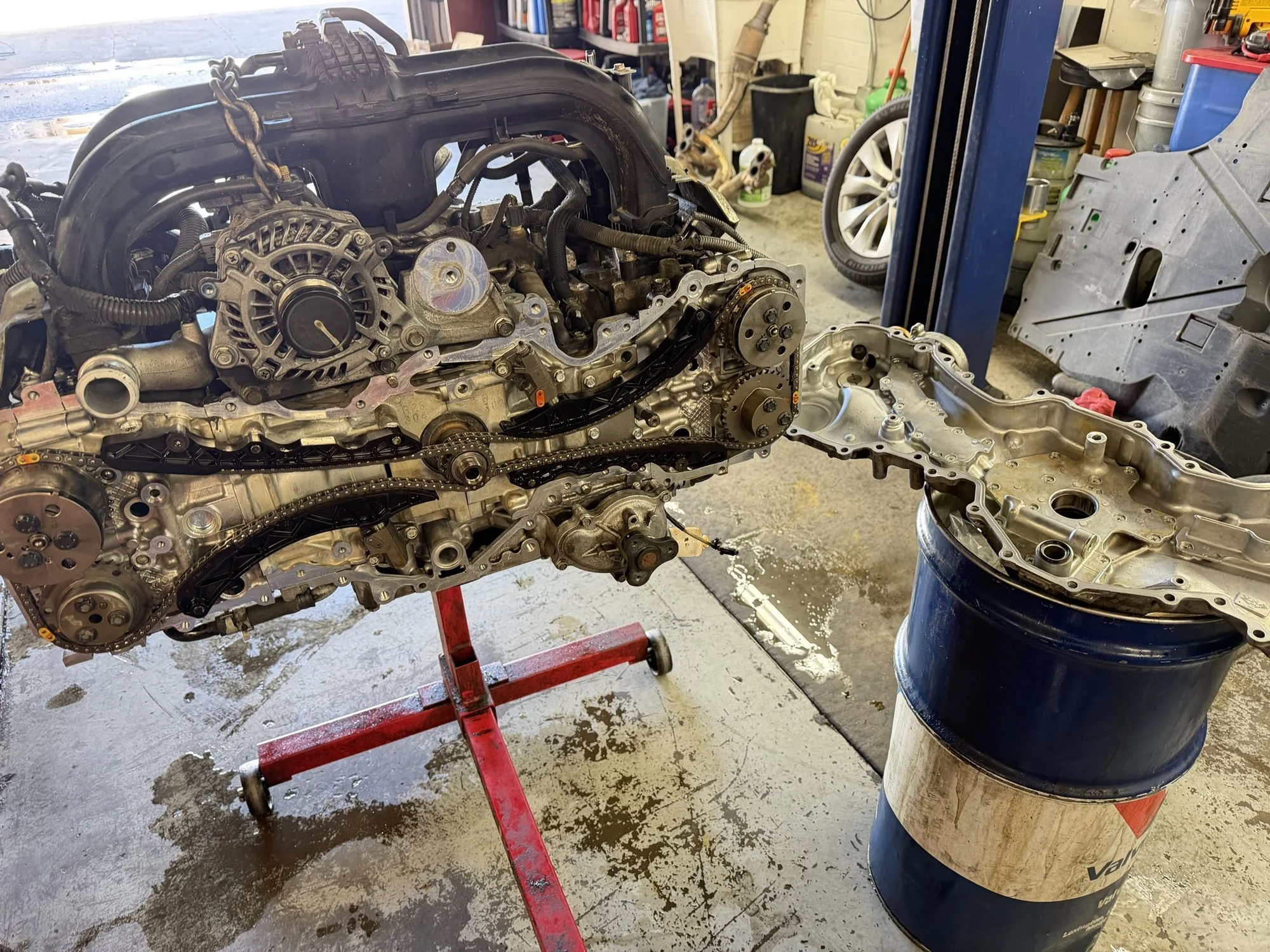

2017 Subaru Legacy (pictured)
A 2017 Subaru Legacy came in with leaking cam carriers. At 100k miles, I recommended we replace the upper oil pan O-rings as well. The engine came out, the cam carriers and upper oil pan were resealed with new O-rings, and it went back together with fresh fluids.
Why bring it to Cars and Locks
This is a big job, and Subaru-specific experience makes the difference. I'm a Subaru Master Technician, and this is a repair I know inside and out. You get dealer-level work at an independent shop's price, backed by my 2-year parts and labor warranty.
